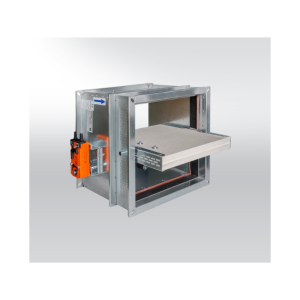

The Smoke Control Damper is an essential fire-safety component designed for modern ventilation and air conditioning systems. It plays a critical role in isolating smoke during fire emergencies, ensuring safe evacuation routes and protecting building infrastructure. Engineered with advanced sealing materials, high-grade steel, and reliable actuators, this damper guarantees efficient smoke control, safety compliance, and long-lasting durability in demanding environments. Trusted by industries worldwide, it ensures optimal protection and minimal risk in case of fire incidents.
Detailed Description
Our Smoke Control Damper is purpose-built to manage smoke movement within buildings, improving safety for occupants and supporting fire-fighting measures. Installed at strategic points in ventilation systems, it activates automatically when fire or smoke is detected, preventing smoke spread to protected areas while directing it toward designated exhaust pathways.
Manufactured with corrosion-resistant stainless steel and precision sealing technology, the damper withstands extreme conditions such as high heat, pressure, and moisture without performance loss. It is rigorously tested for more than 5000 operational cycles, ensuring long-term reliability well beyond industry standards. With waterproof construction and high-temperature resistance up to 1200°C, it maintains stability in the toughest environments. Designed for ease of installation, routine maintenance, and integration with fire alarm systems, this damper is a complete solution for commercial, residential, and industrial facilities. Shandong Wanneng Group delivers reliable safety equipment that enhances building fire protection systems worldwide.
Technical Specifications
| Attribute | Specification |
|---|---|
| Type | Smoke Control Damper |
| Material | High-grade stainless steel with corrosion-resistant coating |
| Temperature Resistance | Up to 1200°C continuous operation |
| Pressure Resistance | Withstands up to 5000 Pa differential (20% higher than industry standards) |
| Cycle Life | 5000+ opening/closing cycles (industry standard 3000) |
| Water Resistance | IP67 rating (operates after 30 min submersion at 1m depth) |
| Sealing | Double sealing with advanced smoke-proof and waterproof materials |
| Operation | Automatic or manual, electric actuator optional |
| Installation | Ceiling, floor, partition wall, or firewall integration |
| Maintenance | Easy inspection, cleaning, and actuator testing |
Key Features & Benefits
Our Smoke Control Damper is designed with precision and durability to deliver exceptional fire safety performance:
-
Rapid Smoke Isolation: Responds quickly to fire, sealing ducts to contain smoke and protect safe zones.
-
High-Temperature Resistance: Functions for over 2 hours at 1200°C without structural failure.
-
Superior Durability: Over 5000 tested cycles ensure reliable long-term operation with reduced costs.
-
Waterproof Protection: IP67 rating allows continued function in high humidity or submerged conditions.
-
Enhanced Safety Design: Withstands 5000 Pa pressure, maintaining performance in critical conditions.
-
Easy Installation & Service: Standardized interfaces and clear guides simplify setup and maintenance.
With these features, the damper provides cost-effective, reliable, and compliant fire-safety protection for diverse projects.
Applications & Use Cases
The Smoke Control Damper is suitable for a wide range of environments where fire safety and smoke management are critical:
-
Commercial Buildings: Ensures smoke-free escape routes in office towers, malls, and complexes.
-
Hospitals & Healthcare Facilities: Maintains clean air pathways and protects patients during emergencies.
-
Hotels & Hospitality: Enhances guest safety by isolating smoke in corridors and rooms.
-
Industrial Facilities: Provides reliable protection in warehouses, factories, and production units.
-
Residential Complexes: Safeguards stairwells, basements, and apartment blocks with efficient smoke control.
By managing smoke flow effectively, this damper enhances building safety, compliance, and occupant protection in emergencies.
FAQs
Q1: What is a Smoke Control Damper and how does it work?
A Smoke Control Damper is a fire-safety device that closes ventilation ducts during a fire, preventing smoke from spreading and directing it safely outside.
Q2: Where should a Smoke Control Damper be installed?
It should be installed at key points in ventilation systems such as firewalls, partition walls, or ceilings to effectively isolate smoke.
Q3: Is the Smoke Control Damper suitable for high-temperature conditions?
Yes, it operates continuously at temperatures up to 1200°C, ensuring stability and safety in extreme fire conditions.
Q4: How durable is the Smoke Control Damper?
The damper is tested for 5000+ cycles, exceeding industry standards, and built from stainless steel for long-term durability.
Q5: Does the Smoke Control Damper require regular maintenance?
Yes, routine cleaning and inspection are recommended, but its robust design minimizes frequent servicing needs.
