Fan Coil Units (FCUs) are essential components of modern HVAC systems, designed to provide efficient heating and cooling across residential, commercial, and institutional environments. Compact, versatile, and energy-efficient, they ensure stable indoor comfort throughout the year. By combining advanced heat exchange technology with quiet operation, FCUs are the ideal solution for maintaining healthy air quality and consistent temperatures.

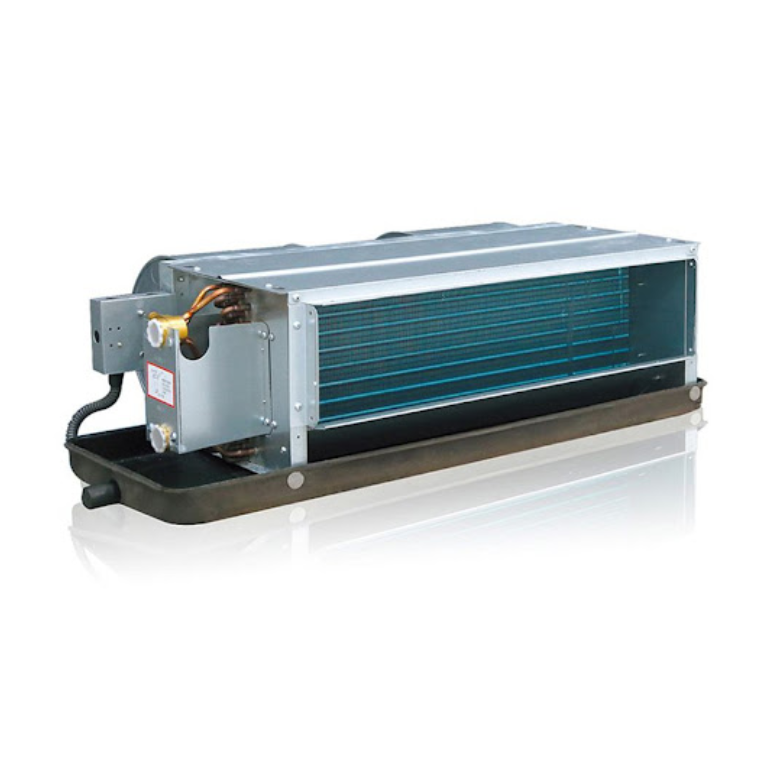

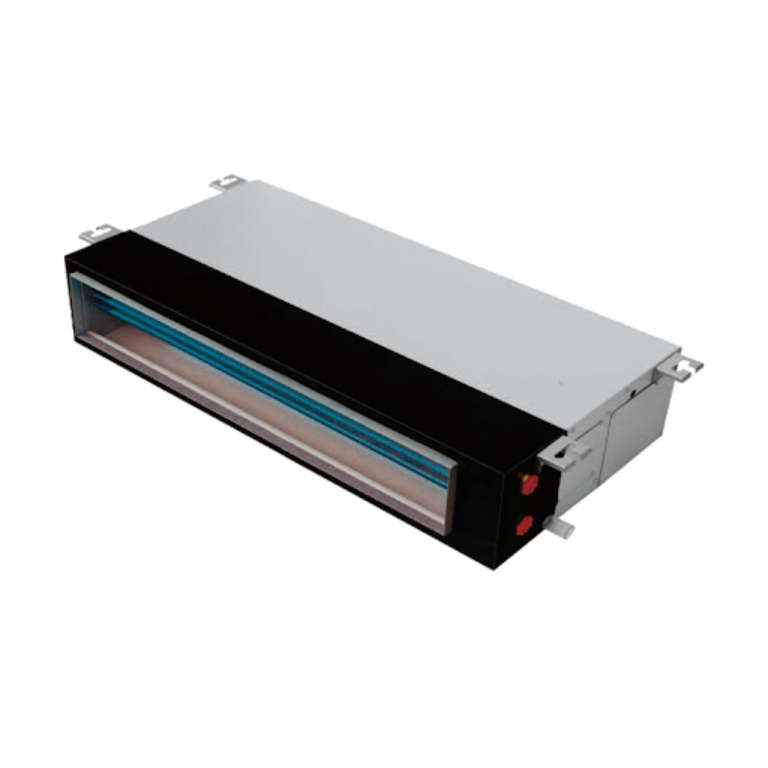

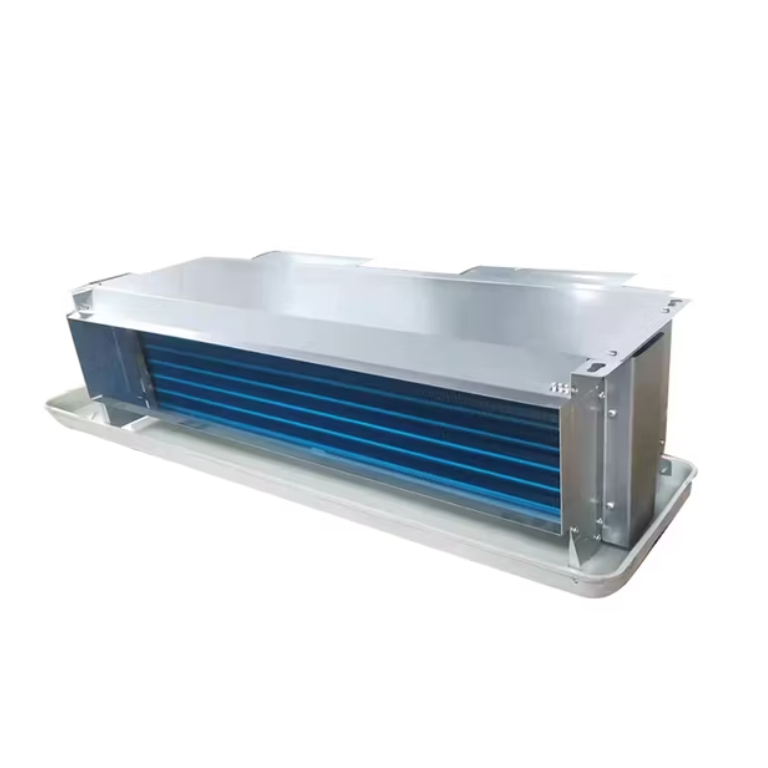

At Shandong Wanneng Group, we manufacture and supply a wide range of Fan Coil Units—including concealed, vertical, horizontal, and ceiling-mounted models—each engineered for durability, performance, and compliance with international standards.
Our Fan Coil Units are designed to adapt to different layouts and requirements, making them suitable for new buildings or retrofit projects. Options include:
Each model is built for reliable performance, flexible installation, and long-term efficiency.
| Fan Coil Capacity | Maximum Environment Size |
|---|---|
| 200 CFM | Up to 12 m² |
| 300 CFM | Up to 20 m² |
| 400 CFM | Up to 28 m² |
| 600 CFM | Up to 40 m² |
| 800 CFM | Up to 56 m² |
| 1000 CFM | Up to 70 m² |
| 1200 CFM | Up to 80 m² |
| Model | Cooling Capacity | Width | Height | Depth | Weight | Fans peed | Air Flow Rate | Voltage / Phase / Frequency |
|---|---|---|---|---|---|---|---|---|
| 727 | 4,000 BTU | 420 mm | 200 mm | 240 mm | 6 kg | 3 | 140 m³/h | 230 V / 1 / 50–60 Hz |
| 728 | 5,000 BTU | 420 mm | 200 mm | 240 mm | 6 kg | 3 | 255 m³/h | 230 V / 1 / 50–60 Hz |
| 745 | 12,000 BTU | 460 mm | 270 mm | 310 mm | 9 kg | 3 | 470 m³/h | 230 V / 1 / 50–60 Hz |
| 746 | 8,000 BTU | 410 mm | 370 mm | 270 mm | 8 kg | 3 | 370 m³/h | 230 V / 1 / 50–60 Hz |
| 747 | 15,000 BTU | 640 mm | 275 mm | 330 mm | 6 kg | 3 | 470 m³/h | 230 V / 1 / 50–60 Hz |
| 748 | 24,000 BTU | 850 mm | 275 mm | 330 mm | 18 kg | 3 | 940 m³/h | 230 V / 1 / 50–60 Hz |
| 749 | 20,000 BTU | 640 mm | 275 mm | 410 mm | 18 kg | 4 | 725 m³/h | 230 V / 1 / 50–60 Hz |
| 750 | 30,000 BTU | 850 mm | 275 mm | 410 mm | 20 kg | 3 | 1,060 m³/h | 230 V / 1 / 50–60 Hz |
| 751 | 18,000 BTU | 640 mm | 275 mm | 330 mm | 12 kg | 4 | 940 m³/h | 230 V / 1 / 50–60 Hz |
| 752 | 30,000 BTU | 850 mm | 275 mm | 410 mm | 23 kg | 3 | 1,400 m³/h | 230 V / 1 / 50–60 Hz |
Enhanced Comfort – Ensures consistent temperature and even airflow across all spaces.
Energy Efficiency – Advanced heat exchange reduces operational costs.
Quiet Operation – Noise-reducing design ideal for bedrooms, hotels, and offices.
Compact & Space-Saving – Fits in ceilings, corners, or utility areas with ease.
Flexible Installation – Available in horizontal, vertical, concealed, and ceiling-mounted designs.
Durable Construction – High-quality galvanized steel casing ensures long life.
Low Maintenance – Built to minimize upkeep while maintaining peak efficiency.
Wide Capacity Range – Options from small rooms to large-scale projects.
Residential Homes – Reliable comfort for bedrooms, living areas, and apartments.
Commercial Offices – Creates a productive and comfortable workspace.
Hotels & Hospitality – Quiet, efficient climate control enhances guest experiences.
Healthcare Facilities – Provides clean, controlled airflow essential for safety.
Retail & Shopping Spaces – Maintains a welcoming indoor environment.
Educational Institutions – Ensures healthy, stable temperatures for classrooms.
Q1: What is the main purpose of Fan Coil Units?
They regulate indoor temperatures by circulating air over heating or cooling coils, ensuring year-round comfort.
Q2: Are Fan Coil Units energy-efficient?
Yes, they use advanced technology and precise controls to reduce energy consumption.
Q3: Where can Fan Coil Units be installed?
They can be installed in homes, offices, hospitals, schools, hotels, and retail spaces.
Q4: How quiet are Fan Coil Units?
They are engineered for quiet operation, making them suitable even for bedrooms and luxury hotels.
Q5: Do they require frequent maintenance?
No, only routine inspection and cleaning are required to maintain efficiency and extend service life.
